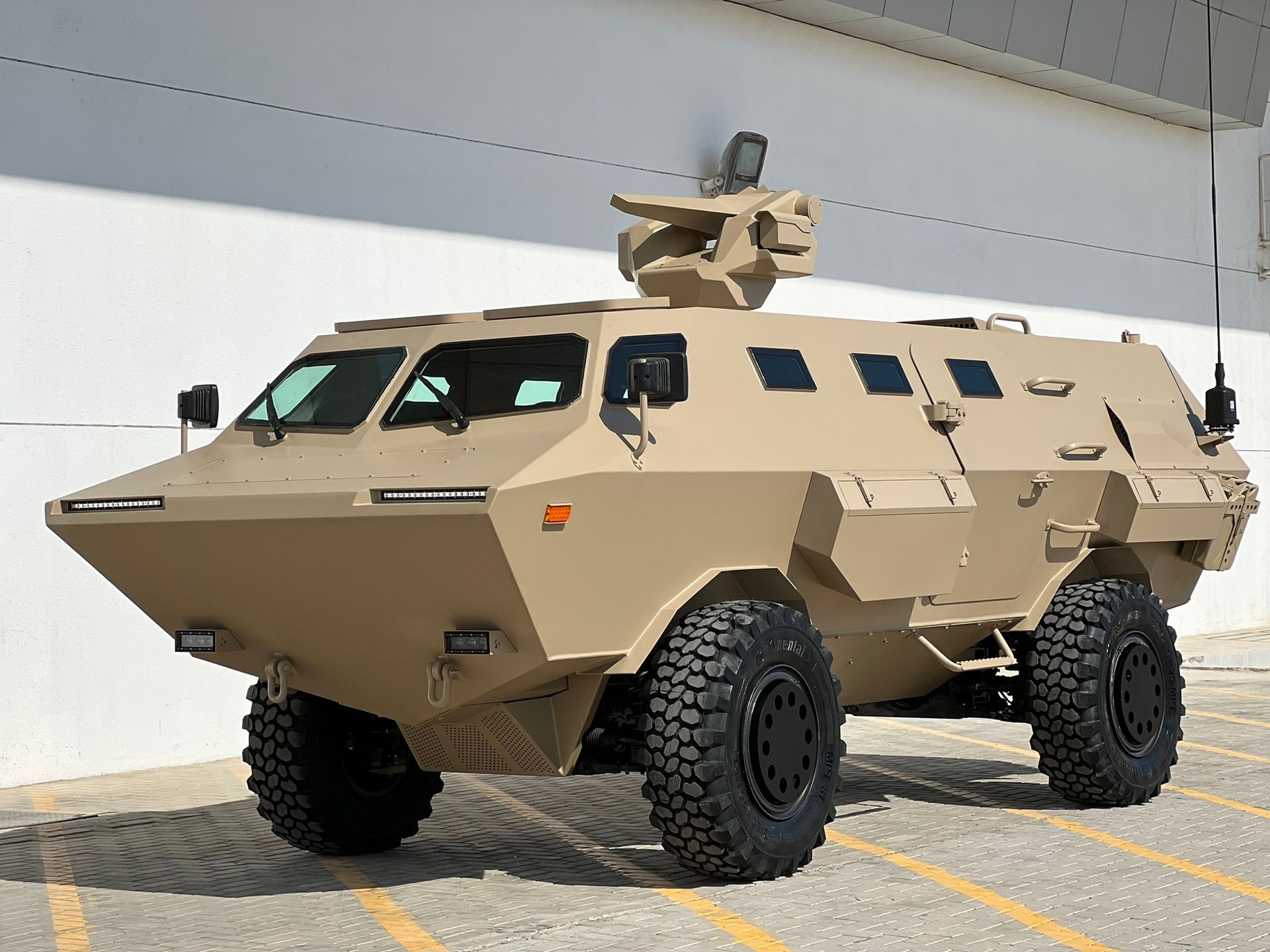

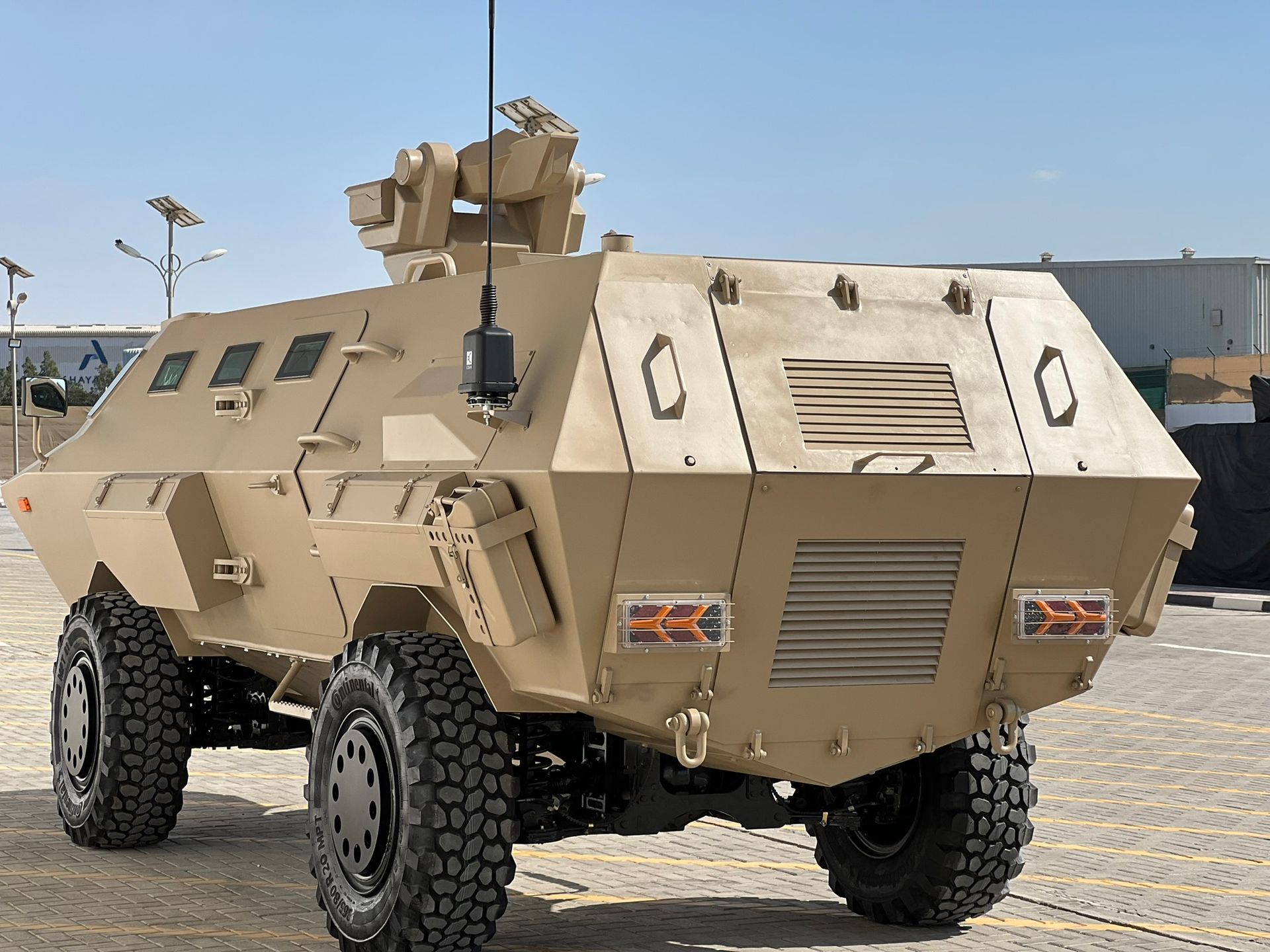

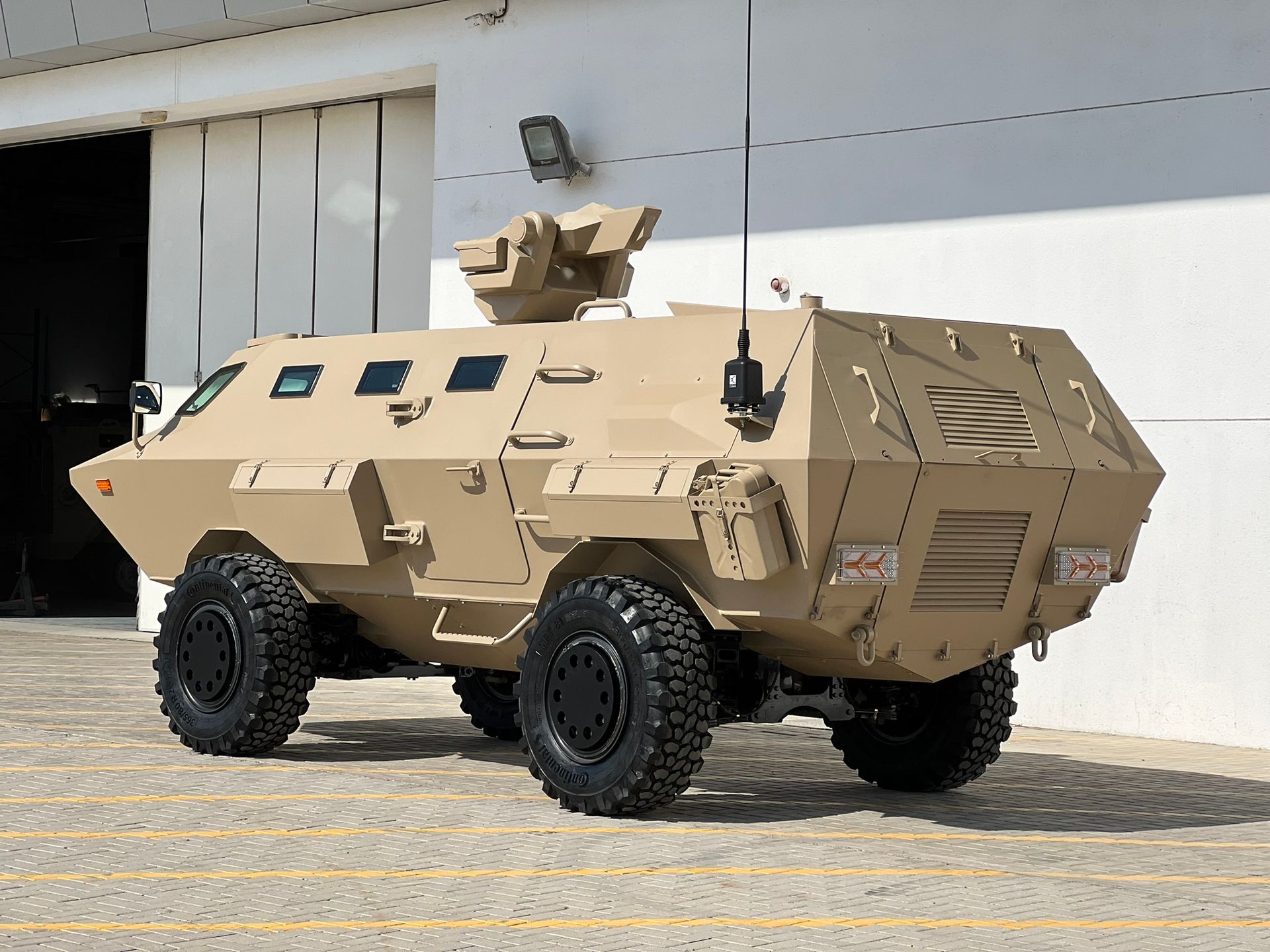

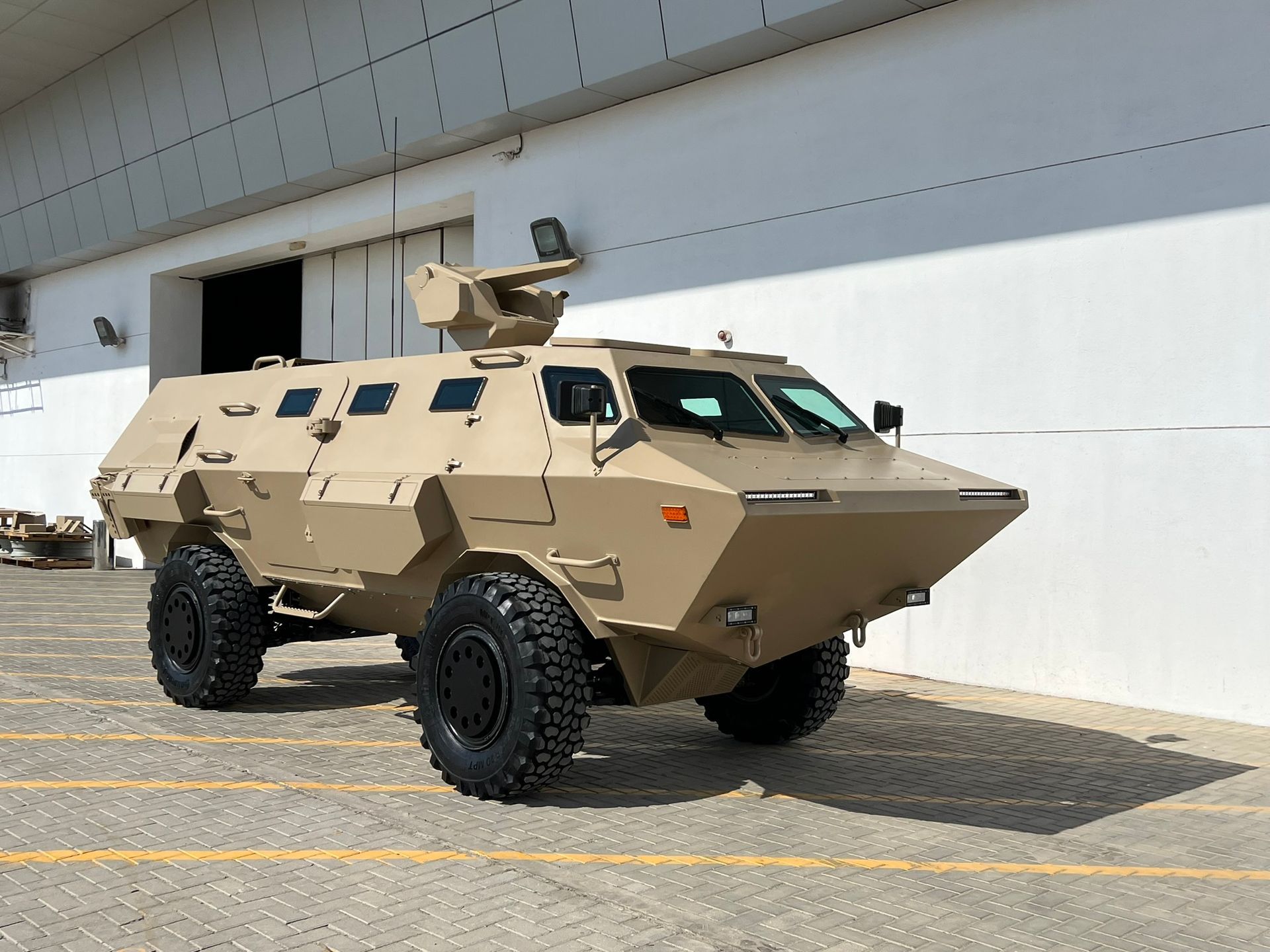

Orion APC
Details
The Orion is our newest prototype designed on large capacity on long-distance operations.
The Meteor can be outfitted with a unique and comes with a default armoring of STANAG 4569 Level III. Orion outclasses all similar carriers in it class in protection and versatility. Additional features listed below.
- Independent Suspension
- Central Tire Inflation System (CTIS)
- FLIR Driver Aid System
- Roof mounted 360-degree turret with perimeter protection
- GPS
- Automatic Fire Suppression System
Specifications
| Engine Type | 8.3L Diesel | Transmission | 6 Speed Fully Automatic Transmission |
|---|---|---|---|
| Horsepower | 330 HP | Fuel Type | Diesel |
| Dimensions | W - 2,500 mm | L - 6,120 mm | H - 2,360 mm / 2,650 mm w/turret | Wheelbase | 3500 mm |
| Drive Config. | AWD | Seats | 9 Seats (7 + 2) |
| Armoring | STANAG II + III | Suspension | Independent |
